Magnetic Cable Connector 4 Pin Pogo Contacts Male Female Pair

Magnetic Cable Connector 4 Pin Pogo Contacts Male Female Pair

The magnetic cable connector cable material is black TPE 80A outer mold of the joint, wire OD3.5mm 4C (red and black: 65*0.08, white and green: 16*0.08,tin-plated copper wire)Covered with black TPE.

The 4pin magnetic cable connector magnet is neodymium iron boron (NdFeB),the grade of the magnet is N52,the adhesive force of the magnetic cable connector male and female docking is more than 550G.

4Pin Magnetic Cable Connectors Parameter:

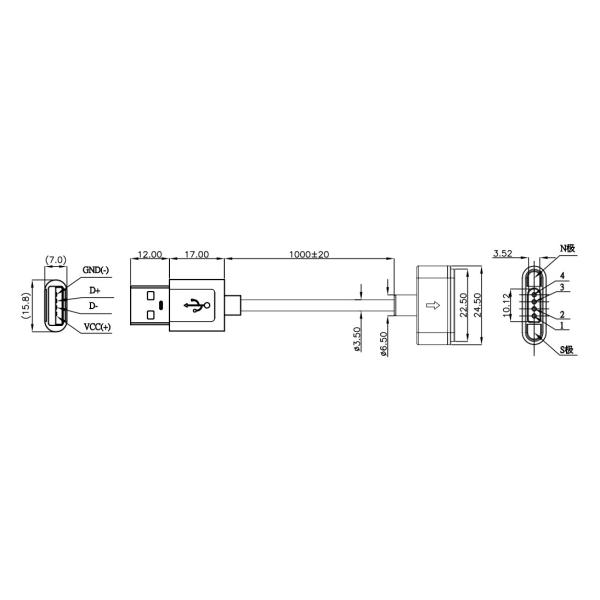

4Pin Male Magnetic Cable Connector Drawing Size:

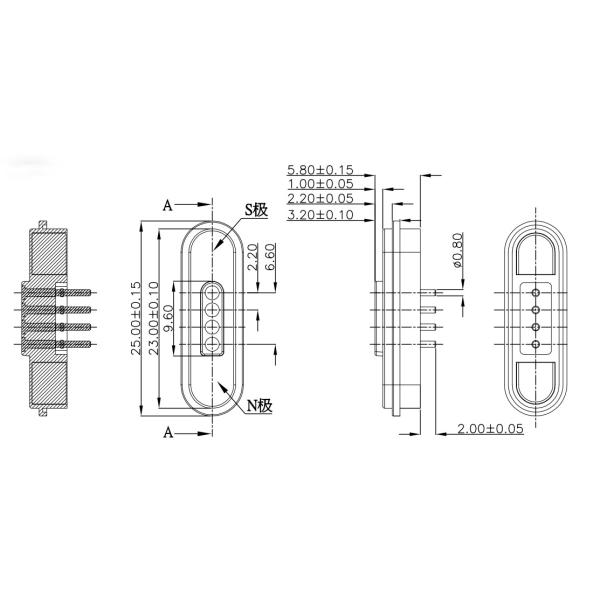

4Pin Female Magnetic Connector Drawing Size:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Why choose UPE?

• High-tech production with precision engineering

• Competitive pricing without compromising quality

• Systematic quality control for consistent performance

• Professional customization service
• Fast sample production capability
• Processing with imported components
• High-precision test equipment

• Reasonable cost control procedures

• Product environmental standards

Magnetic Cable Connectors Application:

.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets, etc.

.Medical equipment, wireless equipment, data communications equipment, telecommunication equipment, automation and industrial equipment, audio-visual equipment

.Aviation, aerospace electronic, military communication,Automotive, car navigation, test and measurement equipment

.Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, camera, watch, portable consumer electronic products)

How to place the order
* You send us drawing or sample

* Our professional engineering team conducts the assessment

* You confrim the drawing and we make the sample to send you

* You test the sample and approved,then place an order and pay 50% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to you with DHL, TNT,UPS,Fedex

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Shipping:

Any question, please send to union@upetech.net
